In this post, we’ll dig deep into how TileIR works, from how it generates instructions to analyzing its different passes. We’ll trace how a Mixture-of-Experts (MoE) kernel written in CuTile gets compiled down through cuda_tile → nv_tileaa → nv_tileas → NVVM → LLVM → SASS.

Here’s what to expect:

What is CuTile? — The tile-centric programming model
Running Example — An MoE kernel we’ll trace through every stage
The Dialects — From cuda_tile through nv_tileaa and nv_tileas to NVVM/LLVM
The Passes — TileIR passes: what they do and when they run

Based on CUDA 13.1. Some details are undocumented and may change in future releases.

What is CuTile?

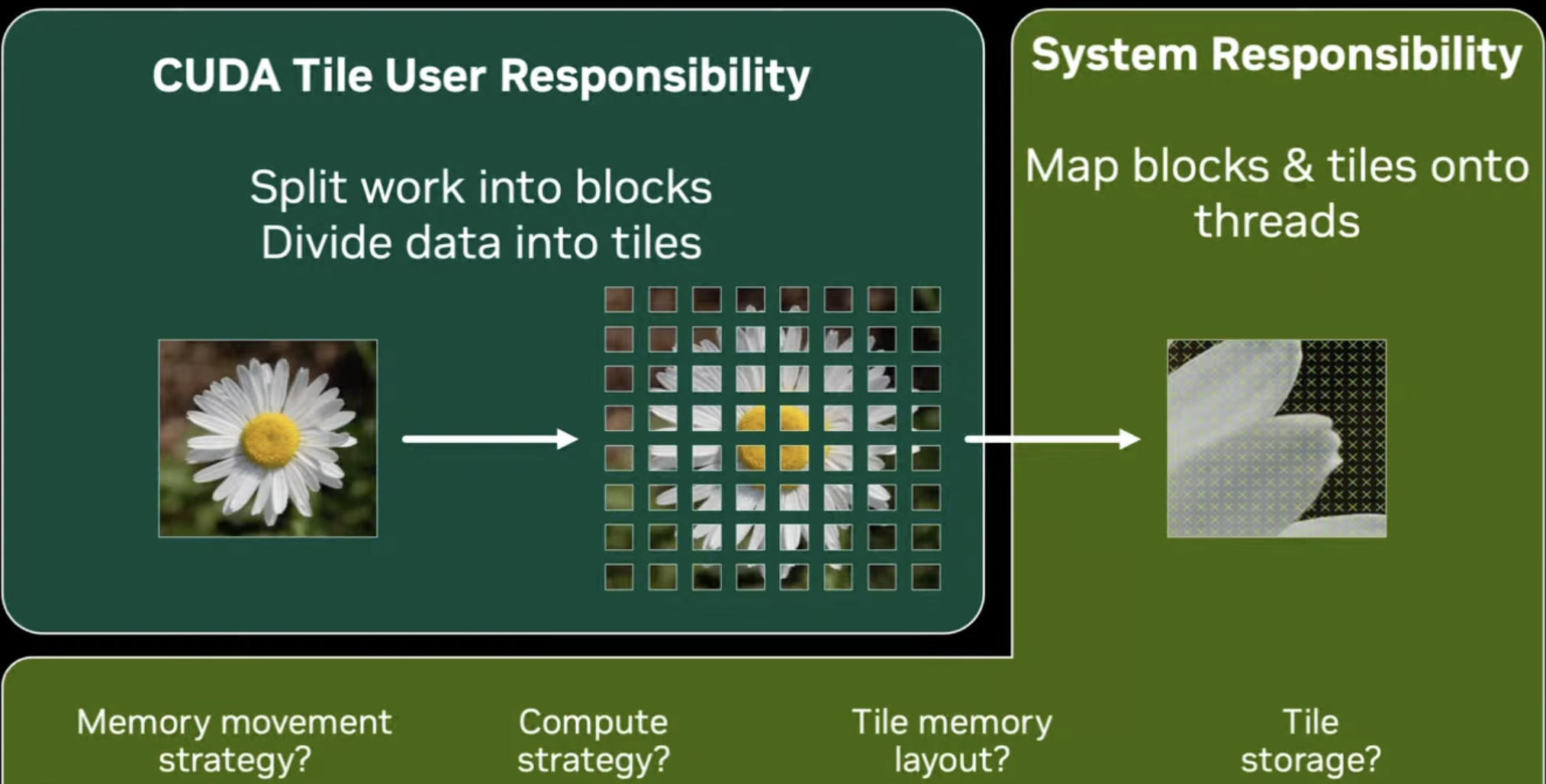

CuTile separates user responsibility (splitting work into blocks and tiles) from system responsibility (mapping to threads) (Image source: GPU MODE)

CuTile is NVIDIA’s new “tile-centric” programming model for modern NVIDIA GPUs. This abstraction is powerful: CuTile lets the programmer think in terms of tiles rather than threads, while the compiler handles the complexity of coordinating hundreds of threads across fragmented data. A single CuTile line ct.mma(a, b, acc) could get transformed to many tensor core instructions.

What is TileIR?

TileIR is NVIDIA’s MLIR-based compiler infrastructure that powers CuTile. It progressively lowers your high-level tensor operations through multiple MLIR dialects and NVIDIA specific tools:

TileIR compilation pipeline: Python → SASS

The user-facing tool is tileirasLike ptxas but for TileIR. Yes, NVIDIA named it “tile-ir-as” (tile IR assembler)., which orchestrates this entire pipeline.

Running Example: MoE Kernel

Throughout this post, we’ll trace this MoE (Mixture of Experts) kernel through every compilation stage. This is code from NVIDIA’s cutile-python samplesThere’s also a C++ API: NVIDIA/cuda-tile. Operations like ct.gather, ct.mma, cuda_tile.load_view_tko documented in TileIR docs.:

@ct.kernel
def fused_moe_kernel(
    A,                          # Input tokens, shape (batch, K)
    B,                          # Expert weights, shape (num_experts, N, K)
    C,                          # Output tensor, shape (num_tokens * topk, N)
    topk_weights,               # Router weights for each token-expert pair
    sorted_token_ids,           # Token indices sorted by expert assignment
    sorted_expert_ids,          # Expert index for each TILE_M
    num_token_replicas: int,
    mul_routed_weight: ConstBool,
    TILE_M: ConstInt,
    TILE_N: ConstInt,
    TILE_K: ConstInt,
):
    M = sorted_token_ids.shape[0]
    N = B.shape[1]
    K = B.shape[2]

    GROUP_SIZE_M = 8
    bid_m, bid_n = swizzle_2d(M, N, TILE_M, TILE_N, GROUP_SIZE_M)  # → cuda_tile.get_tile_block_id

    # Gather token indices for this block
    token_id_indices = bid_m * TILE_M + ct.arange(TILE_M, dtype=ct.int32)
    token_ids = ct.gather(sorted_token_ids, token_id_indices)      # → cuda_tile.load_view_tko
    a_row_indices = token_ids // num_token_replicas
    expert_id = ct.load(sorted_expert_ids, index=bid_m, shape=())  # → cuda_tile.load_ptr_tko

    # Initialize accumulator
    accumulator = ct.full((TILE_M, TILE_N), 0.0, dtype=ct.float32) # → cuda_tile.constant

    for k in range(0, ct.cdiv(K, TILE_K)):                         # → cuda_tile.for
        # Load A tile (gathered by token indices)
        a_col_indices = k * TILE_K + ct.arange(TILE_K, dtype=ct.int32)
        a = ct.gather(A, (a_row_indices[:, None], a_col_indices[None, :]))  # → cuda_tile.load_view_tko

        # Load B tile (expert weights)
        b = ct.load(B, (expert_id, k, bid_n), shape=(1, TILE_K, TILE_N),
                    order=(0, 2, 1)).reshape((TILE_K, TILE_N))      # → cuda_tile.load_ptr_tko

        accumulator = ct.mma(a, b, accumulator)                     # → cuda_tile.mmaf ← THE COMPUTE!

    if mul_routed_weight:
        moe_weight = ct.gather(topk_weights, token_ids)
        accumulator = accumulator * moe_weight[:, None]             # → cuda_tile.mulf

    # Scatter results back to output
    c_col_indices = bid_n * TILE_N + ct.arange(TILE_N, dtype=ct.int32)
    accumulator = ct.astype(accumulator, C.dtype)                   # → cuda_tile.ftof
    ct.scatter(C, (token_ids[:, None], c_col_indices[None, :]), accumulator)  # → cuda_tile.store_ptr_tko

The three key operations we’ll trace:

Python	cuda_tile	What it does
ct.gather(A, indices)	load_view_tko	Gather tokens by expert assignment (indirect load)
ct.load(B, ...)	load_ptr_tko	Load expert weights (direct load)
ct.mma(a, b, acc)	mmaf	Matrix multiply-accumulate on tensor cores

Watch how these transform through nv_tileaa, nv_tileas and finally to SASS instructions.

Compiling with tileiras

The tileiras command-line tool is the ahead-of-time compiler that transforms .cutile bytecode into GPU binaries.

tileiras --gpu-name sm_120 MoE.cutile -o moe.cubin

Undocumented Environment Variables

These TileIR-specific environment variables affect compilation:

Variable	Description
TILEIR_ALWAYS_SWIZZLE	Force swizzle mode for TMA operations
TILEIR_PREFER_TMA_FOR_LOAD_STORE	Prefer TMA for all load/store operations
TILEIR_DELAY_TMA_STORE_WAIT	Delay TMA store wait (optimization for overlapping compute)

Example: Effect of TILEIR_ALWAYS_SWIZZLE

# Without swizzle
$ tileiras --gpu-name sm_120 MoE.cutile -o moe.cubin
$ cuobjdump -sass moe.cubin | grep -i "LD\|ST" | head -3
        /*0910*/                   LDG.E R9, desc[UR8][R2.64] ;
        /*1c30*/                   LDGSTS.E.BYPASS.128 [R45], desc[UR8][R10.64], P0 ;

# With swizzle forced
$ TILEIR_ALWAYS_SWIZZLE=1 tileiras --gpu-name sm_120 MoE.cutile -o moe_swizzle.cubin
$ cuobjdump -sass moe_swizzle.cubin | grep -i "LD\|ST" | head -3
        /*0910*/                   LDG.E.SWIZZLE R9, desc[UR8][R2.64] ;
        /*1c30*/                   LDGSTS.E.BYPASS.SWIZZLE.128 [R45], desc[UR8][R10.64], P0 ;

Interesting undocumented CLI options

The --print-before-all flag dumps LLVM IR before each compilation pass.

$ tileiras --print-before-all --gpu-name=sm_120 MoE.cutile -o moe.cubin 2>&1

*** IR Dump Before Add __emutls_[vt]. variables for emultated TLS model (lower-emutls) ***
; ModuleID = 'LLVMDialectModule'
source_filename = "LLVMDialectModule"
target datalayout = "e-m:e-p270:32:32-p271:32:32-p272:64:64-i64:64-i128:128-f80:128-n8:16:32:64-S128"

@__CUDA_TILEIR_FUNC_NAME_0 = internal constant [17 x i8] c"fused_moe_kernel\00"
...

All LLVM passes dumped (27 unique passes)

*** IR Dump Before Add __emutls_[vt]. variables for emultated TLS model (lower-emutls) ***
*** IR Dump Before Canonicalize natural loops (loop-simplify) ***
*** IR Dump Before CodeGen Prepare (codegenprepare) ***
*** IR Dump Before Constant Hoisting (consthoist) ***
*** IR Dump Before Exception handling preparation (dwarf-eh-prepare) ***
*** IR Dump Before Expand Atomic instructions (atomic-expand) ***
*** IR Dump Before Expand fp (expand-fp) ***
*** IR Dump Before Expand indirectbr instructions (indirectbr-expand) ***
*** IR Dump Before Expand large div/rem (expand-large-div-rem) ***
*** IR Dump Before Expand memcmp() to load/stores (expand-memcmp) ***
*** IR Dump Before Expand reduction intrinsics (expand-reductions) ***
*** IR Dump Before Instrument function entry/exit with calls to e.g. mcount() (post-inline-ee-instrument) ***
*** IR Dump Before Interleaved Access Pass (interleaved-access) ***
*** IR Dump Before Lower AMX intrinsics (lower-amx-intrinsics) ***
*** IR Dump Before Lower AMX type for load/store (lower-amx-type) ***
*** IR Dump Before Lower Garbage Collection Instructions (gc-lowering) ***
*** IR Dump Before Merge contiguous icmps into a memcmp (mergeicmps) ***
*** IR Dump Before ObjC ARC contraction (objc-arc-contract) ***
*** IR Dump Before Partially inline calls to library functions (partially-inline-libcalls) ***
*** IR Dump Before Pre-ISel Intrinsic Lowering (pre-isel-intrinsic-lowering) ***
*** IR Dump Before Prepare callbr (callbrprepare) ***
*** IR Dump Before Remove unreachable blocks from the CFG (unreachableblockelim) ***
*** IR Dump Before Replace intrinsics with calls to vector library (replace-with-veclib) ***
*** IR Dump Before Safe Stack instrumentation pass (safe-stack) ***
*** IR Dump Before Scalarize Masked Memory Intrinsics (scalarize-masked-mem-intrin) ***
*** IR Dump Before Shadow Stack GC Lowering (shadow-stack-gc-lowering) ***
*** IR Dump Before X86 Partial Reduction (x86-partial-reduction) ***

Pipeline Overview

TileIR compilation pipeline: Python → SASS

TileIR takes your CuTile Python code through a series of progressive lowerings:

Stage	Format	Description
Python	CuTile API	High-level tensor operations (make_tensor_view; mmaf)
.cutile	Bytecode	Serialized representation of the kernel
cuda_tile	MLIR Dialect	High-level tensor ops; architecture-independent
nv_tileaa	MLIR Dialect	Tile-level ops; explicit memory references
nv_tileas	MLIR Dialect	Scheduled ops; async pipelines
LLVM/NVVM	LLVM IR	Standard LLVM with NVIDIA intrinsics
PTX	Assembly	Virtual GPU assembly
SASS	Machine Code	Native GPU instructions (sm_120)

Each stage removes abstraction and adds architecture-specific detail. By the time we reach SASS, every memory access pattern, tensor core instruction, and synchronization barrier is explicit.

The Dialects

TileIR uses three main MLIR dialects to represent computations at different abstraction levels. Let’s trace our MoE kernel through each one:

Python	cuda_tile	nv_tileaa	nv_tileas	SASS
ct.gather(A, idx)	load_view_tko	tileaa.load_view	tileas.utcpglobalmem	UTCPMULTI / LDG
ct.load(B, ...)	load_ptr_tko	tileaa.load_tko	tileas.tcgen05_ld	TCGEN05.LD.S
ct.mma(a, b, c)	mmaf	tileaa.mmaf_tko	tileas.tcgen05_mma	TCGEN05.MMA

cuda_tile: High-Level Tensor Operations

cuda_tile dialect operations

The cuda_tile dialect is closest to your Python code. Operations work on abstract tensor views without worrying about memory layout or hardware details.

Key operations:

make_tensor_view - Create a view into a tensor with shape and strides
get_tile_block_id - Get the current thread block’s position in the grid
load_view_tko / store_view_tko - Load/store tiles with token-based ordering
mmaf - Matrix multiply-accumulate (targets tensor cores)
for / continue - Loop constructs for K-dimension iteration

MoE in cuda_tile

Recall our MoE kernel above. Here’s how the key operations map to cuda_tile IR:

Python → cuda_tile mapping:

Python (CuTile)	cuda_tile IR	Purpose
ct.gather()	load_view_tko	Gather elements by indices
ct.load()	load_ptr_tko	Load contiguous tile from memory
ct.mma()	mmaf	Matrix multiply-accumulate (tensor cores)
ct.scatter()	store_ptr_tko	Scatter elements to output
ct.full()	constant	Initialize accumulator
for k in range()	for/continue	K-dimension iteration loop
ct.astype()	ftof	Type conversion (F32 → output dtype)

Expand to see cuda_tile IR from MoE kernel key sections

// cuda_tile dialect - MoE kernel

%1 = "cuda_tile.constant"() : () -> (ct.view)     // TILE_M
%2 = "cuda_tile.constant"() : () -> (ct.view)     // TILE_N
%3 = "cuda_tile.constant"() : () -> (ct.view)     // TILE_K
%4 = "cuda_tile.assume"(%arg0) : (ct.view) -> (ct.view)
%5 = "cuda_tile.assume"(%arg1) : (ct.view) -> (ct.view)

%10 = "cuda_tile.make_tensor_view"(%4, %5, %6, %7, %8, %9)
    : (ct.view, ct.view, ct.view, ct.view, ct.view, ct.view) -> (ct.token)
%11 = "cuda_tile.make_tensor_view"(%arg2, %arg3) : (ct.view, ct.view) -> (ct.token)
%12 = "cuda_tile.make_token"() : () -> (ct.ptr)

%20, %21, %22 = "cuda_tile.get_tile_block_id"() : () -> (ct.view, ct.view, ct.view)
%23 = "cuda_tile.divi"(%4, %1) : (ct.view, ct.view) -> (ct.view)   // M / TILE_M
%24 = "cuda_tile.muli"(%1, %23) : (ct.view, ct.view) -> (ct.view)
%25 = "cuda_tile.divi"(%20, %24) : (ct.view, ct.view) -> (ct.view)

%30 = "cuda_tile.remi"(%20, %25) : (ct.view, ct.view) -> (ct.view)   // expert routing
%31 = "cuda_tile.cmpi"(%30, %1) : (ct.view, ct.view) -> (ct.view)
%32 = "cuda_tile.select"(%31, %30, %25) : (ct.view, ct.view, ct.view) -> (ct.view)

%40 = "cuda_tile.iota"() : () -> (ct.view)
%41 = "cuda_tile.reshape"(%24) : (ct.view) -> (ct.view)
%42 = "cuda_tile.broadcast"(%41) : (ct.view) -> (ct.view)
%43 = "cuda_tile.addi"(%42, %40) : (ct.view, ct.view) -> (ct.view)
%44 = "cuda_tile.offset"(%42, %43) : (ct.view, ct.view) -> (ct.view)

%50, %51 = "cuda_tile.load_ptr_tko"(%44, %31, %42, %12)             // ct.load()
    : (ct.view, ct.view, ct.view, ct.ptr) -> (ct.view, ct.ptr)
%52 = "cuda_tile.make_partition_view"(%10) : (ct.token) -> (ct.part)
%53, %54 = "cuda_tile.load_view_tko"(%52, %43, %12)                 // ct.gather()
    : (ct.part, ct.view, ct.ptr) -> (ct.view, ct.ptr)

%60 = "cuda_tile.for"(%1, %23, %3, %arg4) {1 regions}              // K-loop
    : (ct.view, ct.view, ct.view, ct.view) -> (ct.view)
    %61 = "cuda_tile.muli"(%iter, %3) : (ct.view, ct.view) -> (ct.view)
    %62 = "cuda_tile.broadcast"(%61) : (ct.view) -> (ct.view)
    %63, %64 = "cuda_tile.load_ptr_tko"(%62, %31, %42, %12)
        : (ct.view, ct.view, ct.view, ct.ptr) -> (ct.view, ct.ptr)
    %65, %66 = "cuda_tile.load_view_tko"(%52, %62, %12)
        : (ct.part, ct.view, ct.ptr) -> (ct.view, ct.ptr)
    %67 = "cuda_tile.mmaf"(%63, %65, %acc)                          // ct.mma()
        : (ct.view, ct.view, ct.view) -> (ct.view)
    "cuda_tile.continue"(%67) : (ct.view) -> ()

%70 = "cuda_tile.ftof"(%60) : (ct.view) -> (ct.view)               // ct.astype()
%71 = "cuda_tile.store_ptr_tko"(%44, %70, %31, %12)                // ct.scatter()
    : (ct.view, ct.view, ct.view, ct.ptr) -> (ct.ptr)
"cuda_tile.return"()

nv_tileaa

nv_tileaa dialect operations

The nv_tileaa dialect lowers tensor views to concrete memory references. This is where we start seeing explicit memory operations.

Key changes from cuda_tile:

make_tensor_view → make_memref (explicit memory references)
get_tile_block_id → get_program_id (program-centric naming)
mmaf → dot (more explicit accumulation)
Explicit tiled_load / tiled_store with memory tokens
New ops: splat, broadcast, addptr for memory address calculations

Expand to see nv_tileaa IR from MoE kernel key sections

// nv_tileaa dialect - MoE kernel
// Tile-level ops (architecture-independent)

"nv_tileaa.func"() {nv_tileaa.kernel_spec} {1 regions}

// Input validation
%1 = "nv_tileaa.assume"(%arg0) : (aa.memref) -> (aa.memref)
%2 = "nv_tileaa.assume"(%arg1) : (iN) -> (iN)
%3 = "nv_tileaa.assume"(%2) : (iN) -> (iN)

// Splat: scalar → tensor (for broadcasting)
%10 = "nv_tileaa.splat"(%3) : (iN) -> (tensor<...>)
%11 = "nv_tileaa.splat"(%2) : (iN) -> (tensor<...>)

// Memory reference creation (lowered from make_tensor_view)
%20 = "nv_tileaa.make_memref"(%1, %2, %3, %4, %5, %6)
    : (aa.memref, iN, iN, iN, iN, iN) -> (aa.btile)
%21 = "nv_tileaa.make_memref"(%1, %2) : (aa.memref, iN) -> (aa.btile)
%22 = "nv_tileaa.create_mem_token"() : () -> (aa.ptr)

// Program indexing
%30 = "nv_tileaa.get_program_id"() : () -> (iN)
%31 = "nv_tileaa.splat"(%30) : (iN) -> (tensor<...>)
%32 = "nv_tileaa.make_range"(%c0, %c128) : (iN, iN) -> (tensor<...>)
%33 = "nv_tileaa.extract"(%32) : (tensor<...>) -> (iN)

// Pointer arithmetic
%40 = "nv_tileaa.splat"(%1) : (aa.memref) -> (tensor<...>)
%41 = "nv_tileaa.addptr"(%40, %33) : (tensor<...>, tensor<...>) -> (tensor<...>)

// Masked loads
%50, %51 = "nv_tileaa.load"(%41, %mask, %c0, %22)
    : (tensor<...>, tensor<...>, tensor<...>, aa.ptr) -> (tensor<...>, aa.ptr)

// Tiled memory operations
%60 = "nv_tileaa.block_tile"(%20) : (aa.btile) -> (aa.mtoken)
%61 = "nv_tileaa.extract"(%32) : (tensor<...>) -> (iN)
%62, %63 = "nv_tileaa.tiled_load"(%60, %61, %22)
    : (aa.mtoken, iN, aa.ptr) -> (tensor<...>, aa.ptr)
%64 = "nv_tileaa.view"(%62) : (tensor<...>) -> (tensor<...>)

// Shape manipulation
%70 = "nv_tileaa.expand_dims"(%33) : (tensor<...>) -> (tensor<...>)
%71 = "nv_tileaa.broadcast"(%70) : (tensor<...>) -> (tensor<...>)

// DOT OPERATION (lowered from cuda_tile.mmaf)
%80 = "nv_tileaa.dot"(%50, %64, %acc)
    : (tensor<...>, tensor<...>, tensor<...>) -> (tensor<...>)

// Output
%90 = "nv_tileaa.fp_to_fp"(%80) : (tensor<...>) -> (tensor<...>)
%91 = "nv_tileaa.store"(%41, %90, %mask, %22)
    : (tensor<...>, tensor<...>, tensor<...>, aa.ptr) -> (aa.ptr)
"nv_tileaa.return"()

Key transformations from cuda_tile → nv_tileaa:

cuda_tile	nv_tileaa	Change
make_tensor_view	make_memref	Abstract view → concrete memory ref
get_tile_block_id	get_program_id	Tile-centric → program-centric naming
mmaf	dot	High-level MMA → explicit dot product
load_view_tko	tiled_load + view	Decomposed into separate ops
ct.view types	tensor<...>	Abstract → explicit tensor shapes
ct.token	aa.btile; aa.mtoken	Memory tokens more specific

Pass #12 observation: The 32 fp_to_fp operations suggest this MoE kernel produces 32 output tiles that need precision conversion from F32 accumulator to the output dtype.

nv_tileas

nv_tileas dialect with tcgen05 operations

The nv_tileas dialect is where architecture-specific code generation happens.

This dialect introduces:

Async Pipeline Operations:

async.pipeline.create - Create a software pipeline for overlapping compute/memory
producer_acquire / producer_commit - Acquire/release pipeline stages
consumer_wait / consumer_release - Synchronize consumers with producers

Tensor Memory Operations:

tcgen05.alloc - Allocate dedicated tensor memory
tmem_load / tmem_store - Access tensor memory

Tensor Core Operations:

tcgen05.mma - Matrix Multiply-Accumulate
block_scaled_mma - Block-scaled MMA for mixed precision
mma.fence - Memory fence for MMA operations

Expand to see nv_tileas IR from MoE kernel key sections

// nv_tileas dialect - MoE kernel
// Tile-level Scheduled Assembly

// Layout conversion and view operations
%1, %2 = "nv_tileas.load"(%ptr, %mask, %c0, %token)
    : (tensor<...>, tensor<...>, tensor<...>, aa.ptr) -> (tensor<...>, aa.ptr)
%3, %4 = "nv_tileas.tiled_load"(%btile, %idx, %token)
    : (aa.mtoken, iN, aa.ptr) -> (tensor<...>, aa.ptr)
%5 = "nv_tileas.view"(%3) : (tensor<...>) -> (tensor<...>)

// Convert layout for tensor cores
%10 = "nv_tileas.convert_layout"(%bcast) : (tensor<...>) -> (tensor<...>)
%11 = "nv_tileas.convert_layout"(%5) : (tensor<...>) -> (tensor<...>)
%12 = "nv_tileas.convert_layout"(%1) : (tensor<...>) -> (tensor<...>)

// DOT with input allowances
%20 = "nv_tileas.dot"(%10, %11, %12, %c1)
    : (tensor<...>, tensor<...>, tensor<...>, iN) -> (tensor<...>)

// TMA descriptor
%25 = "nv_tileas.make_tiled_tma_desc"(%memref) {tmaIdx=0}
    : (aa.btile) -> (!tma.desc)

// ASYNC PIPELINE (producer-consumer model)

// Pipeline and iterator creation
%30 = "nv_tileas.async.pipeline.create_pipeline"() : () -> (!pipeline)
%31 = "nv_tileas.async.pipeline.create_pipeline"() : () -> (!pipeline)
%32 = "nv_tileas.async.pipeline.create_iterator"(%30) : (!pipeline) -> (!iter)
%33 = "nv_tileas.async.pipeline.create_iterator"(%31) : (!pipeline) -> (!iter)

// Agent switch (4 regions for producer/consumer roles)
"nv_tileas.async.pipeline.agent_switch"(%arg0, %30, %32, %31, %33) {4 regions}
    : (aa.memref, !pipeline, !iter, !pipeline, !iter) -> ()

// Tensor allocation (double-buffering)
%40 = "nv_tileas.alloc_tensor"() : () -> (tensor<128x64xbf16>)
%41 = "nv_tileas.alloc_tensor"() : () -> (tensor<64x128xbf16>)

// Slice operations
%50 = "nv_tileas.extract_slice"(%40, %c0) : (tensor<...>, iN) -> (tensor<...>)
%51 = "nv_tileas.insert_slice"(%data, %40, %c0, %c64)
    : (tensor<...>, tensor<...>, iN, iN) -> (tensor<...>)

// PRODUCER: acquire → write → commit
%60 = "nv_tileas.async.pipeline.producer_acquire"(%30, %32) : (!pipeline, !iter) -> (!stage)
%61 = "nv_tileas.async.pipeline.producer_write"(%60, %30) {1 regions}
    : (!stage, !pipeline) -> (!stage)
    %62 = "nv_tileas.async.load"(%51, %ptr, %mask, %c16)
        : (tensor<...>, tensor<...>, tensor<...>, tensor<...>) -> (!async)
    "nv_tileas.async.pipeline.yield"(%62) : (!async) -> ()
"nv_tileas.async.pipeline.producer_commit"(%30, %61) : (!pipeline, !stage) -> ()

// CONSUMER: wait → read → release
%70 = "nv_tileas.async.pipeline.consumer_wait"(%31, %33) : (!pipeline, !iter) -> (!stage)
%71, %72 = "nv_tileas.async.pipeline.consumer_read"(%70, %31) {1 regions}
    : (!stage, !pipeline) -> (!stage, tensor<...>)
    %73 = "nv_tileas.copy"(%buf) : (tensor<...>) -> (tensor<...>)
    "nv_tileas.async.pipeline.yield"(%73) : (tensor<...>) -> ()
"nv_tileas.async.pipeline.consumer_release"(%31, %71) : (!pipeline, !stage) -> ()

// Matrix multiply (100+ ops for tiled GEMM)
%80 = "nv_tileas.dot"(%50, %72, %acc, %c1)
    : (tensor<...>, tensor<...>, tensor<...>, iN) -> (tensor<...>)
%81 = "nv_tileas.dot"(%50, %72, %80, %c1)
    : (tensor<...>, tensor<...>, tensor<...>, iN) -> (tensor<...>)

// TMA load
%90 = "nv_tileas.async.tiled_tma_load"(%btile, %buf, %25, %idx, %c0, %c64)
    : (aa.mtoken, tensor<...>, !tma.desc, iN, iN, iN) -> (!async)

// Output
%100 = "nv_tileas.insert_slice"(%result, %41, %c0, %c0)
    : (tensor<...>, tensor<...>, iN, iN) -> (tensor<...>)
%101 = "nv_tileas.view"(%100) : (tensor<...>) -> (tensor<...>)
%102 = "nv_tileas.convert_layout"(%101) : (tensor<...>) -> (tensor<...>)

NVVM + LLVM

After nv_tileas, the compiler lowers to NVVM (NVIDIA’s LLVM dialect) and then to standard LLVM IR.

Key NVVM intrinsics:

@llvm.nvvm.mma.sync.* - Tensor core matrix multiply
@llvm.nvvm.ldmatrix.* - Load matrix fragments from shared memory
@llvm.nvvm.cp.async.* - Asynchronous memory copy
@llvm.nvvm.bar.warp.sync - Warp-level synchronization
@llvm.nvvm.tcgen05.* - Tensor core intrinsics

Expand to see NVVM/LLVM IR key sections

; Thread ID and warp-level operations
%233 = call range(i32 0, 1024) i32 @llvm.nvvm.read.ptx.sreg.tid.x()
%234 = icmp eq i32 %233, 0
%235 = ashr i32 %233, 5
%236 = call i32 @llvm.nvvm.shfl.sync.idx.i32(i32 -1, i32 %235, i32 0, i32 31)
%237 = call { i32, i1 } @llvm.nvvm.elect.sync(i32 -1)

; Mbarrier initialization (async pipeline synchronization)
call void @llvm.nvvm.mbarrier.init.shared(
    ptr addrspace(3) getelementptr inbounds nuw (i8, ptr addrspace(3) @global_smem, i64 82000),
    i32 %241)
call void @llvm.nvvm.mbarrier.init.shared(
    ptr addrspace(3) getelementptr inbounds nuw (i8, ptr addrspace(3) @global_smem, i64 82008),
    i32 %241)

; Cluster-wide fence and barrier
call void asm sideeffect "fence.mbarrier_init.release.cluster;", "n"(i32 0)
call void @llvm.nvvm.barrier.cta.sync.aligned.all(i32 0)

; Async copy from global to shared memory (cp.async)
%1478 = select i1 %1459, i32 16, i32 0
call void @llvm.nvvm.cp.async.cg.shared.global.16.s(
    ptr addrspace(3) %1477, ptr addrspace(1) %1451, i32 %1478)
call void @llvm.nvvm.cp.async.cg.shared.global.16.s(
    ptr addrspace(3) %1485, ptr addrspace(1) %1452, i32 %1486)

; Signal mbarrier arrival after async copy
call void @llvm.nvvm.cp.async.mbarrier.arrive.noinc.shared(ptr addrspace(3) %1535)

; TCGEN05 tensor core intrinsics
; Allocate tensor memory
%tmem = call i32 @llvm.nvvm.tcgen05.alloc(i32 65536)

; Load data into tensor memory
call void @llvm.nvvm.tcgen05.ld(i32 %tmem, ptr addrspace(3) %smem_ptr, i32 %size)

; Execute TCGEN05 MMA (128x256x64 tile)
call void @llvm.nvvm.tcgen05.mma(i32 %tmem_a, i32 %tmem_b, i32 %tmem_c)

; Fence and wait for tensor core completion
call void @llvm.nvvm.tcgen05.fence()
call void @llvm.nvvm.tcgen05.wait()

SASS

The final output is SASS.

Key SASS instructions:

HMMA.16816.F32.BF16 - Half-precision matrix multiply-accumulate
TCGEN05.MMA - Tensor core MMA
TCGEN05.LD.S - Tensor memory load
UTCPMULTI / LDG - Global memory loads
SYNCS.EXCH - Async synchronization exchange
FENCE.VIEW.ASYNC.S - Async memory fence

Expand to see SASS key sections

; SASS - MoE kernel (fused_moe_kernel)
; Target: sm_120a

; Thread ID and CTA setup
/*0020*/    S2R R0, SR_TID.X ;                  ; Get thread ID
/*0060*/    S2UR UR8, SR_CgaCtaId ;             ; Get CTA ID (uniform reg)

; Async fence and mbarrier sync (cluster sync)
/*0110*/    FENCE.VIEW.ASYNC.S ;
/*0120*/    SYNCS.EXCH.64 URZ, [UR8+0x14050], UR4 ;
/*0130*/    SYNCS.EXCH.64 URZ, [UR8+0x14058], UR4 ;
/*0140*/    SYNCS.EXCH.64 URZ, [UR8+0x14060], UR6 ;

; ... (data loading, address calculation) ...

; Tensor core HMMA - 16x8x16 BF16→F32 matrix multiply
; R156 = A matrix fragment (reused across 7 HMMAs)
; R124,R120,R116,R112,R108,R104,R100 = B matrix fragments
; R200,R204,R64,R60,R56,R52,R48 = accumulator tiles
/*4a00*/    HMMA.16816.F32.BF16 R200, R156, R124, R200 ;
/*4a10*/    HMMA.16816.F32.BF16 R204, R156, R120, R204 ;
/*4a20*/    HMMA.16816.F32.BF16 R64, R156, R116, R64 ;
/*4a30*/    HMMA.16816.F32.BF16 R60, R156, R112, R60 ;
/*4a40*/    HMMA.16816.F32.BF16 R56, R156, R108, R56 ;
/*4a50*/    HMMA.16816.F32.BF16 R52, R156, R104, R52 ;
/*4a60*/    HMMA.16816.F32.BF16 R48, R156, R100, R48 ;

; Second A fragment (R148) with different B fragments
/*4a70*/    HMMA.16816.F32.BF16 R200, R148, R126, R200 ;
/*4a80*/    HMMA.16816.F32.BF16 R204, R148, R122, R204 ;
/*4a90*/    HMMA.16816.F32.BF16 R64, R148, R118, R64 ;

The TileIR passes

TileIR runs multiple passes to transform your code. The passes are grouped by the scope they operate on:

TileIR pass pipeline

Detailed pass pipeline: cuda_tile.entry → nv_tileaa.func (×12) → builtin.module → gpu.module

Pass 1: `cuda_tile.entry`

Entry point canonicalization—validates kernel structure, emits compile-time constants for tile sizes/strides, propagates input constraints via assume operations, creates tensor views, and establishes memory ordering via make_token.

Pass 2: `nv_tileaa.func` (×12 iterations)

Iterative lowering from cuda_tile to nv_tileaa. First iteration converts make_tensor_view → make_memref, get_tile_block_id → get_program_id, mmaf → dot, decomposes load_view_tko into block_tile + tiled_load + view. Subsequent iterations perform refinement and optimization. Final iteration emits precision conversions (fp_to_fp), adds kernel metadata, and prepares for async pipeline lowering.

Pass 3: `builtin.module`

Module-level transforms and nv_tileas emission—creates async pipeline operations, software pipelines for overlapping compute/memory, producer-consumer synchronization, TMA descriptors, and double buffers.

Pass 4: `gpu.module`

Final lowering to NVVM/LLVM—converts nv_tileas.dot → nvvm.mma.sync, lowers async ops to barrier/fence instructions, converts memory ops to NVVM intrinsics (ldmatrix, cp.async, mbarrier.*), and emits address space annotations.

Complete Pass Catalog

Below is a catalog of passes that run within the TileIR pipeline.

Conversion Passes

Pass Name	Source	Target	Description
convert-cudatile-to-tileaa	cuda_tile	nv_tileaa	Frontend: CuTile DSL to TileAA abstract assembly
convert-tileaa-to-tileas	nv_tileaa	nv_tileas	Middle-end: Abstract to scheduled assembly
convert-nv-tileas-to-llvm	nv_tileas	llvm	Backend: TileAS to LLVM IR
convert-nv-tile-func-to-llvm	nv_tile	llvm	Convert tile function ops to LLVM
convert-gpu-to-nvvm	gpu	nvvm	GPU dialect to NVVM intrinsics
convert-scf-to-cf	scf	cf	Structured control flow to basic blocks
nv-tile-ir-convert-target-to-nvvm	nv_tile	nvvm	Target-specific ops to NVVM
convert-pipeline-to-nvvm	pipeline	nvvm	Async pipeline ops to NVVM barriers
convert-arith-to-llvm	arith	llvm	Arithmetic operations to LLVM
convert-cf-to-llvm	cf	llvm	Control flow to LLVM
convert-to-llvm	*	llvm	Generic catch-all LLVM conversion
convert-math-to-llvm	math	llvm	Math operations to LLVM
convert-nvvm-to-llvm	nvvm	llvm	NVVM intrinsics to LLVM
convert-ub-to-llvm	ub	llvm	Undefined behavior ops to LLVM
convert-vector-to-llvm	vector	llvm	Vector ops to LLVM
convert-debuginfo-to-llvm	debug	llvm	Debug info to LLVM metadata

TileAS Optimization Passes

Pass Name	Description
tileas-assign-dot-layouts	Assign optimal data layouts for dot (MMA) operations
tileas-assign-pipeline-layouts	Assign layouts for async pipeline stages
tileas-assign-load-store-layouts	Assign layouts for memory operations
tileas-attach-tma-desc-args	Attach TMA descriptor arguments to kernel signature
tileas-dynamic-persistent	Enable dynamic persistent kernel execution
tileas-insert-OCG-knobs	Insert Online Code Generation tuning knobs
tileas-legalize-tmem-copy	Legalize tensor memory copy operations
tileas-plan-cta	Plan CTA (thread block) configuration
tileas-remove-buffer-alias	Remove buffer aliasing for optimization
tileas-remove-dead-args	Dead argument elimination
tileas-remove-layout-conversions	Remove unnecessary layout conversions
tileas-resolve-agent-boundary	Resolve warp specialization agent boundaries
tileas-slicing	Tensor slicing for pipelining
tileas-materialize-async	Materialize async load/store/dot operations
tileas-materialize-convert-layout	Materialize layout conversion copy atoms
tileas-materialize-schedule	Materialize schedule to warp-specialized IR
tileas-unroll-register-loops	Unroll loops at register level
tileas-unspecialized-pipeline	Handle non-warp-specialized pipelines
tileas-optimize-alloc-tensor	Optimize tensor allocation placement
tileas-optimize-reduce	Optimize reduction operations
tileas-recompute-for-scheduling	Recompute values for better scheduling
tileas-legalize-fma-dot	Legalize FMA in dot products
tileas-legalize-reduce	Legalize reduction operations
tileas-slice-and-fuse	Slice and fuse operations for locality
tileas-refine-atom-by-resource	Refine copy atoms based on resource constraints
tileas-generate-schedule	Generate execution schedule (Serial or CostBased)
tileas-prepare-for-scheduling	Prepare IR for scheduling pass
tileas-optimize-dot-accumulation	Optimize dot product accumulation
lower-tma-load-store-to-async	Lower TMA ops to async variants
tileas-print-decomposed-tv-layout	Debug: print decomposed tensor view layouts

Conversion Patterns Registered

The TileAA→TileAS conversion registers 20+ patterns:

TileAAToTileASTiledLoadOpPattern      // Tiled load conversion
TileAAToTileASDotOpPattern            // Dot product conversion
TileAAToTileASExtractOpPattern        // Extraction conversion
TileAAToTileASBroadcastOpPattern      // Broadcast conversion
TileAAToTileASGatherLoadOpPattern     // Gather load conversion
TileAAToTileASScatterStoreOpPattern   // Scatter store conversion
TileAAToTileASExpandDimsOpPattern     // Dimension expansion
TileAAToTileASExtractSliceOpPattern   // Slice extraction
TileAAToTileASGenerateOpPattern       // Generate conversion
TileAAToTileASLoadOpPattern           // Load conversion
TileAAToTileASPermuteOpPattern        // Permute conversion
TileAAToTileASReduceOpPattern         // Reduce conversion
TileAAToTileASScanOpPattern           // Scan conversion
TileAAToTileASStoreOpPattern          // Store conversion
TileAAToTileASTiledAtomicRMWOpPattern // Atomic RMW conversion
TileAAToTileASTiledStoreOpPattern     // Tiled store conversion
TileAAToTileASViewOpPattern           // View conversion
TileAAToTileASYieldOpPattern          // Yield conversion

Conclusion

TileIR is a sophisticated MLIR-based compiler that progressively lowers high-level tensor operations to optimized GPU machine code. It’s an interesting piece of software that combines MLIR and the rest of NVIDIA’s toolchain to make the tile abstraction work.

Resources:

Appendix: TileIR Passes Reference

This appendix documents the TileIR-specific passes in the compilation pipeline. Passes are organized into categories: Conversion and TileAS Optimization

Conversion Passes (16)

Conversion passes transform IR between MLIR dialects.

convert-cudatile-to-tileaa

Converts high-level cuda_tile dialect to nv_tileaa.

Key transformations:

cuda_tile.mmaf → nv_tileaa.dot
cuda_tile.load_view_tko → nv_tileaa.tiled_load
cuda_tile.store_ptr_tko → nv_tileaa.tiled_store
cuda_tile.for → scf.for + nv_tileaa.yield

void ConvertCudaTileToTileAA::runOnOperation() {
    ModuleOp module = getOperation();
    ConversionTarget target(getContext());
    target.addLegalDialect<nv_tileaa::NVTileAADialect>();
    target.addIllegalDialect<cuda_tile::CudaTileDialect>();

    RewritePatternSet patterns(&getContext());
    // Register 20+ conversion patterns
    patterns.add<ConvertMmafToDot>(...);
    patterns.add<ConvertLoadViewTko>(...);
    patterns.add<ConvertStorePtr>(...);

    applyPartialConversion(module, target, std::move(patterns));
}

convert-tileaa-to-tileas

Main middle-end conversion: nv_tileaa → nv_tileas (Tile Assembly).

Key transformations:

nv_tileaa.tiled_load → nv_tileas.async_load + pipeline ops
nv_tileaa.dot → nv_tileas.dot with layout annotations
Inserts shared memory allocations

void ConvertTileAAToTileAS::runOnOperation() {
    FuncOp funcOp = getOperation();

    // Walk all tileaa operations
    funcOp.walk([&](nv_tileaa::TiledLoadOp loadOp) {
        // Create async copy with TMA descriptor
        auto asyncCopy = builder.create<nv_tileas::AsyncCopyOp>(...);

        // Allocate shared memory buffer
        auto smemAlloc = builder.create<nv_tileas::AllocSharedOp>(...);
    });

    funcOp.walk([&](nv_tileaa::DotOp dotOp) {
        // Convert to tileas.dot with layout attributes
        auto tiledDot = builder.create<nv_tileas::DotOp>(...);
        tiledDot->setAttr("lhs_layout", selectMMALayout(...));
    });
}

convert-nv-tileas-to-llvm

Backend code generation: nv_tileas → LLVM IR with NVVM intrinsics.

Key transformations:

tileas.tcgen05_mma → @llvm.nvvm.tcgen05.mma.*
tileas.tcgen05_ld → @llvm.nvvm.tcgen05.ld.*
tileas.async_copy → @llvm.nvvm.cp.async.*
Barrier ops → @llvm.nvvm.barrier.*

void ConvertTileASToLLVM::runOnOperation() {
    ModuleOp module = getOperation();

    ConversionTarget target(getContext());
    target.addLegalDialect<LLVM::LLVMDialect>();

    RewritePatternSet patterns(&getContext());

    // MMA operations
    patterns.add<Tcgen05MMAToNVVM>([](tcgen05::MMAOp op) {
        // Generate NVVM MMA intrinsic
        return builder.create<NVVM::Tcgen05MMAOp>(...);
    });

    // Memory operations with TMA
    patterns.add<Tcgen05LoadToNVVM>([](tcgen05::LoadOp op) {
        return builder.create<NVVM::Tcgen05LoadOp>(...);
    });
}

convert-gpu-to-nvvm

Converts GPU dialect operations to NVVM intrinsics.

GPU Op	NVVM Intrinsic
`gpu.thread_id`	`nvvm.read.ptx.sreg.tid.*`
`gpu.block_id`	`nvvm.read.ptx.sreg.ctaid.*`
`gpu.block_dim`	`nvvm.read.ptx.sreg.ntid.*`
`gpu.barrier`	`nvvm.barrier0`

convert-pipeline-to-nvvm

Converts async pipeline operations to NVVM barrier intrinsics.

Pipeline Op	NVVM Op
`pipeline.producer_acquire`	`nvvm.mbarrier.arrive.*`
`pipeline.producer_commit`	`nvvm.mbarrier.arrive.*` + phase
`pipeline.consumer_wait`	`nvvm.mbarrier.wait.*`
`pipeline.consumer_release`	`nvvm.mbarrier.arrive.*`

TileAS Optimization Passes (30)

TileAS passes optimize and schedule tile operations.

tileas-assign-dot-layouts

Assigns MMA-compatible layouts to dot product operands.

void AssignDotLayouts::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](DotOp dotOp) {
        auto lhsType = dotOp.getLhs().getType();
        auto rhsType = dotOp.getRhs().getType();

        // Select MMA shape based on types
        MMAShape mmaShape = selectMMAShape(lhsType, rhsType);

        // Assign layouts for operands
        Layout lhsLayout = computeLhsLayout(mmaShape, lhsType);
        Layout rhsLayout = computeRhsLayout(mmaShape, rhsType);

        dotOp->setAttr("lhs_layout", lhsLayout);
        dotOp->setAttr("rhs_layout", rhsLayout);
    });
}

MMA shapes: m16n8k16, m16n16k16, m64n256k64

tileas-assign-load-store-layouts

Optimizes memory access patterns for coalesced loads.

void AssignLoadStoreLayouts::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](LoadOp loadOp) {
        auto tensorType = loadOp.getResult().getType();

        // Check for TMA opportunity
        if (canUseTMA(loadOp)) {
            Layout tmaLayout = computeTMALayout(tensorType);
            loadOp->setAttr("layout", tmaLayout);
            loadOp->setAttr("use_tma", true);
        } else {
            // Vectorized load layout
            Layout vecLayout = computeVectorizedLayout(tensorType);
            loadOp->setAttr("layout", vecLayout);
        }
    });
}

tileas-assign-pipeline-layouts

Assigns layouts for async pipeline buffers.

void AssignPipelineLayouts::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](PipelineOp pipelineOp) {
        for (auto& stage : pipelineOp.getStages()) {
            // Assign shared memory layouts for buffers
            for (auto buffer : stage.getBuffers()) {
                Layout smemLayout = computeSwizzledLayout(buffer);
                buffer->setAttr("layout", smemLayout);
            }
        }
    });
}

tileas-generate-schedule

Generates execution schedule using cost-based or serial scheduler.

void GenerateSchedule::runOnOperation() {
    FuncOp funcOp = getOperation();

    // Build dependency graph
    DependencyGraph depGraph(funcOp);

    // Select scheduler based on options
    Scheduler* scheduler;
    if (useCostBasedScheduler) {
        scheduler = new CostBasedScheduler(depGraph);
    } else {
        scheduler = new SerialScheduler(depGraph);
    }

    // Generate schedule
    Schedule schedule = scheduler->generateSchedule();

    // Apply schedule to IR
    applySchedule(funcOp, schedule);
}

Scheduler types:

Serial: Topological order
CostBased: Latency-aware with heuristics

tileas-materialize-schedule

Materializes abstract schedule into warp-specialized IR.

void MaterializeSchedule::runOnOperation() {
    FuncOp funcOp = getOperation();

    Schedule schedule = getSchedule(funcOp);

    if (schedule.getStrategy() == Strategy::WarpSpecialize) {
        // Split into producer/consumer
        auto [producerOps, consumerOps] = partitionOps(funcOp, schedule);

        // Create agent regions
        createAgentRegion(producerOps, AgentRole::Producer);
        createAgentRegion(consumerOps, AgentRole::Consumer);

        // Insert synchronization
        insertBarriers(funcOp, schedule);
    }
}

tileas-materialize-async

Creates async pipeline structure with multi-buffering.

void MaterializeAsync::runOnOperation() {
    FuncOp funcOp = getOperation();
    int numStages = getOption("num-stages");

    funcOp.walk([&](scf::ForOp forOp) {
        if (canPipeline(forOp)) {
            // Create N buffers for N-stage pipeline
            SmallVector<Value> buffers;
            for (int i = 0; i < numStages; i++) {
                buffers.push_back(allocateBuffer(forOp));
            }

            // Transform loop body
            emitPrologue(forOp, buffers);
            emitSteadyState(forOp, buffers);
            emitEpilogue(forOp, buffers);
        }
    });
}

tileas-materialize-convert-layout

Expands layout conversions to actual data movement.

void MaterializeConvertLayout::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](ConvertLayoutOp convertOp) {
        auto srcLayout = getLayout(convertOp.getSource());
        auto dstLayout = getLayout(convertOp.getResult());

        // Generate shuffle or shared memory path
        if (canUseShuffles(srcLayout, dstLayout)) {
            emitShuffleConversion(convertOp);
        } else {
            emitSharedMemoryConversion(convertOp);
        }
    });
}

tileas-attach-tma-desc-args

Injects TMA descriptor arguments into kernel signatures.

void AttachTMADescArgs::runOnOperation() {
    FuncOp funcOp = getOperation();

    SmallVector<TMAOp> tmaOps;
    funcOp.walk([&](Operation* op) {
        if (usesTMA(op)) tmaOps.push_back(op);
    });

    for (auto& tmaOp : tmaOps) {
        // Create TMA descriptor type
        auto descType = TMADescriptorType::get(
            tmaOp.getShape(),
            tmaOp.getElementType(),
            tmaOp.getSwizzle()
        );

        // Add to function arguments
        funcOp.insertArgument(descType, "tma_desc");
    }
}

tileas-slicing

Slices tensors for pipelined execution.

void TileASSlicing::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](LoadOp loadOp) {
        auto tensorType = loadOp.getResult().getType();
        int sliceDim = getSliceDimension(loadOp);
        int sliceSize = computeSliceSize(tensorType, sliceDim);

        // Replace single load with sliced loads
        SmallVector<Value> slices;
        for (int i = 0; i < numSlices; i++) {
            auto slice = builder.create<SlicedLoadOp>(
                loadOp.getSource(), sliceDim, i * sliceSize, sliceSize
            );
            slices.push_back(slice);
        }
    });
}

tileas-plan-cta

Plans CTA (thread block) configuration.

void PlanCTA::runOnOperation() {
    FuncOp funcOp = getOperation();

    // Analyze resource requirements
    int smemRequired = analyzeSharedMemory(funcOp);
    int regsRequired = analyzeRegisters(funcOp);

    // Compute optimal CTA shape
    CTAConfig config = computeCTAConfig(
        smemRequired, regsRequired, targetOccupancy
    );

    funcOp->setAttr("cta_shape", config.toAttribute());
}

tileas-resolve-agent-boundary

Resolves data flow across warp specialization boundaries.

void ResolveAgentBoundary::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](AgentSwitchOp switchOp) {
        // Identify values crossing boundary
        SmallVector<Value> crossingValues;
        for (Value v : switchOp.getOperands()) {
            if (crossesBoundary(v, switchOp)) {
                crossingValues.push_back(v);
            }
        }

        // Insert shared memory communication
        for (Value v : crossingValues) {
            insertSharedMemoryTransfer(v, switchOp);
        }
    });
}

tileas-remove-buffer-alias

Removes buffer aliasing using fixed-point iteration.

void RemoveBufferAlias::runOnOperation() {
    FuncOp funcOp = getOperation();

    bool changed = true;
    while (changed) {
        changed = false;
        funcOp.walk([&](AllocTensorOp allocOp) {
            for (auto& use : allocOp.getResult().getUses()) {
                if (isAliasingUse(use)) {
                    createNonAliasingBuffer(use);
                    changed = true;
                }
            }
        });
    }
}

tileas-remove-dead-args

Removes unused arguments from region operations.

tileas-remove-layout-conversions

Eliminates redundant layout conversions.

void RemoveLayoutConversions::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](ConvertLayoutOp convertOp) {
        auto srcLayout = getLayout(convertOp.getSource());
        auto dstLayout = getLayout(convertOp.getResult());

        // Remove identity conversions
        if (srcLayout == dstLayout) {
            convertOp.replaceAllUsesWith(convertOp.getSource());
            convertOp.erase();
        }
    });
}

tileas-optimize-alloc-tensor

Optimizes tensor allocations through reuse and elimination.

void OptimizeAllocTensor::runOnOperation() {
    FuncOp funcOp = getOperation();
    LivenessAnalysis liveness(funcOp);

    SmallVector<AllocTensorOp> allocs;
    funcOp.walk([&](AllocTensorOp op) { allocs.push_back(op); });

    for (auto& alloc : allocs) {
        // Find reusable buffer
        if (auto reusable = findReusableBuffer(alloc, liveness)) {
            reuseBuffer(alloc, reusable);
        }
    }
}

tileas-optimize-reduce

Optimizes reduction operations with warp shuffle or shared memory.

void OptimizeReduce::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](ReduceOp reduceOp) {
        int reductionSize = getReductionSize(reduceOp);

        if (reductionSize <= 32) {
            setAtom(reduceOp, "warp_shuffle");
        } else if (reductionSize <= 1024) {
            setAtom(reduceOp, "shared_memory");
        } else {
            setAtom(reduceOp, "multi_stage");
        }
    });
}

tileas-optimize-dot-accumulation

Optimizes MMA accumulation patterns for better register utilization.

void OptimizeDotAccumulation::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](DotOp dotOp) {
        auto accumPattern = analyzeAccumulationPattern(dotOp);

        switch (accumPattern) {
            case AccumPattern::SimpleLoop:
                optimizeSimpleAccumulation(dotOp);
                break;
            case AccumPattern::SplitK:
                optimizeSplitKAccumulation(dotOp);
                break;
            case AccumPattern::StreamK:
                optimizeStreamKAccumulation(dotOp);
                break;
        }
    });
}

tileas-recompute-for-scheduling

Trades recomputation for reduced register pressure.

void TileASRecomputeForScheduling::runOnOperation() {
    FuncOp funcOp = getOperation();
    RegisterPressureAnalysis regPressure(funcOp);

    funcOp.walk([&](Operation* op) {
        for (Value result : op->getResults()) {
            if (shouldRecompute(result, regPressure)) {
                markForRecomputation(result);
            }
        }
    });
    applyRecomputations(funcOp);
}

bool shouldRecompute(Value v, RegisterPressureAnalysis& rpa) {
    // Recompute if value is cheap but keeping it live causes spills
    int computeCost = estimateComputeCost(v.getDefiningOp());
    int spillCost = rpa.estimateSpillCost(v);
    return computeCost < spillCost;
}

tileas-legalize-fma-dot

Ensures FMA operations match hardware capabilities.

void LegalizeFmaDot::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](DotOp dotOp) {
        if (hasFmaAccumulation(dotOp)) {
            legalizeFma(dotOp);
        }
    });
}

void legalizeFma(DotOp dotOp) {
    auto accType = dotOp.getAccumulator().getType();

    if (!isLegalAccumulatorType(accType)) {
        auto legalType = getLegalAccumulatorType(accType);
        insertAccumulatorConversion(dotOp, legalType);
    }

    if (isMixedPrecision(dotOp)) {
        legalizeMixedPrecisionFma(dotOp);
    }
}

tileas-legalize-reduce

Ensures reductions use supported types and sizes.

void LegalizeReduce::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](ReduceOp reduceOp) {
        if (!isLegalReduction(reduceOp)) {
            legalizeReduction(reduceOp);
        }
    });
}

void legalizeReduction(ReduceOp reduceOp) {
    auto inputType = reduceOp.getInput().getType();
    auto reductionKind = reduceOp.getReductionKind();

    if (!isSupportedElementType(inputType.getElementType())) {
        insertTypeConversion(reduceOp);
    }
    if (!isSupportedReductionSize(inputType, reduceOp.getReductionDim())) {
        splitReduction(reduceOp);
    }
}

tileas-legalize-tmem-copy

Legalizes tensor memory (tmem) copy operations. Tensor memory is dedicated storage for tensor core operands.

void TileASLegalizeTmemCopy::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](Operation* op) {
        if (auto copyOp = dyn_cast<CopyOp>(op)) {
            if (involvesTmem(copyOp)) {
                legalizeTmemCopy(copyOp);
            }
        }
    });
}

void legalizeTmemCopy(CopyOp copyOp) {
    auto srcLayout = getLayout(copyOp.getSource());
    auto dstLayout = getLayout(copyOp.getDest());

    // Infer register layout from tmem layout
    auto regLayout = inferRegisterLayoutFromTmem(srcLayout);

    // Insert necessary layout conversions
    if (needsConversion(srcLayout, regLayout)) {
        insertLayoutConversion(copyOp, srcLayout, regLayout);
    }
}

tileas-slice-and-fuse

Applies loop tiling (slicing) and fusion for improved data locality.

void SliceAndFuse::runOnOperation() {
    FuncOp funcOp = getOperation();

    SmallVector<FusionGroup> fusionGroups;
    collectFusionCandidates(funcOp, fusionGroups);

    for (auto& group : fusionGroups) {
        auto sliceSize = computeOptimalSliceSize(group);
        sliceOperations(group, sliceSize);
        fuseOperations(group);
    }
}

void fuseOperations(FusionGroup& group) {
    // Create fused loop nest
    // - Single loop iterating over slices
    // - Multiple operations per slice iteration
    auto fusedLoop = createFusedLoop(group);

    for (auto* op : group.getOperations()) {
        moveIntoFusedLoop(op, fusedLoop);
    }
}

tileas-refine-atom-by-resource

Adjusts operation granularity (“atom”) based on available hardware resources.

void RefineAtomByResource::runOnOperation() {
    FuncOp funcOp = getOperation();
    auto resources = getTargetResources(funcOp);

    funcOp.walk([&](Operation* op) {
        if (hasAtomAttribute(op)) {
            refineAtom(op, resources);
        }
    });
}

void refineAtom(Operation* op, ResourceConstraints& resources) {
    auto currentAtom = getAtom(op);

    int smemRequired = estimateSmemUsage(op, currentAtom);
    int regsRequired = estimateRegUsage(op, currentAtom);

    // Refine if over resource limits (SM120: 228KB smem, 65536 regs)
    if (smemRequired > resources.maxSmem ||
        regsRequired > resources.maxRegs) {
        auto refinedAtom = findSmallerAtom(op, resources);
        setAtom(op, refinedAtom);
    }
}

tileas-prepare-for-scheduling

Normalizes IR and annotates operation latencies for the scheduler.

void PrepareForScheduling::runOnOperation() {
    FuncOp funcOp = getOperation();

    normalizeLoops(funcOp);
    insertSchedulingAnchors(funcOp);
    annotateLatencies(funcOp);
    identifyBarriers(funcOp);
}

void annotateLatencies(FuncOp funcOp) {
    funcOp.walk([&](Operation* op) {
        int latency = estimateLatency(op);
        op->setAttr("sched.latency",
                    builder.getI64IntegerAttr(latency));
    });
}

tileas-unroll-register-loops

Unrolls loops that access register-resident tensors (required since GPU registers cannot be dynamically indexed).

void TileASUnrollRegisterLoops::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](scf::ForOp forOp) {
        if (accessesRegisterTensors(forOp)) {
            if (!canAvoidUnroll(forOp)) {
                // Must unroll - register tensors require static indexing
                unrollLoop(forOp);
            }
        }
    });
}

bool accessesRegisterTensors(scf::ForOp forOp) {
    bool accessesRegs = false;
    forOp.walk([&](Operation* op) {
        for (Value operand : op->getOperands()) {
            if (isRegisterTensor(operand)) {
                accessesRegs = true;
            }
        }
    });
    return accessesRegs;
}

tileas-unspecialized-pipeline

Implements software pipelining without warp specialization (all warps do both load and compute).

void TileASUnspecializedPipeline::runOnOperation() {
    FuncOp funcOp = getOperation();
    int numStages = getOption<int>("unspecialized-pipeline-num-stages");

    funcOp.walk([&](scf::ForOp forOp) {
        if (canPipeline(forOp)) {
            applySoftwarePipelining(forOp, numStages);
        }
    });
}

void applySoftwarePipelining(scf::ForOp forOp, int numStages) {
    emitPrologue(forOp, numStages);    // Pre-load data for first N iterations
    emitSteadyState(forOp, numStages); // Overlap load(i+N) with compute(i)
    emitEpilogue(forOp, numStages);    // Drain remaining computations
}

tileas-dynamic-persistent

Transforms kernels into dynamic persistent kernels that process work items from a queue.

void TileASDynamicPersistent::runOnOperation() {
    FuncOp funcOp = getOperation();

    if (funcOp->hasAttr("dynamic_persistent")) {
        emitWarning("Kernel is already dynamic persistent");
        return;
    }

    transformToPersistent(funcOp);
    funcOp->setAttr("dynamic_persistent", builder.getUnitAttr());
}

void transformToPersistent(FuncOp funcOp) {
    // Insert outer loop that fetches work items:
    // while (workAvailable()) {
    //     workItem = fetchWork();
    //     processWorkItem(workItem);
    //     signalCompletion();
    // }
}

tileas-insert-OCG-knobs

Inserts OCG (Optimizing Code Generator) hints for the PTXAS backend.

void TileASInsertOCGKnobs::runOnOperation() {
    FuncOp funcOp = getOperation();

    funcOp.walk([&](Operation* op) {
        if (auto loopOp = dyn_cast<LoopOp>(op)) {
            insertOCGDirectives(loopOp);
        }
        if (auto mmaOp = dyn_cast<DotOp>(op)) {
            insertMMAOptimizationHints(mmaOp);
        }
    });
}

void insertOCGDirectives(Operation* op) {
    op->setAttr("ocgEnterDirectives",
                buildOCGDirectives(op, /*enter=*/true));
    op->setAttr("ocgLeaveDirectives",
                buildOCGDirectives(op, /*enter=*/false));
}

Appendix: IR Dumps

This appendix contains the IR dumps from the MoE kernel compilation. Some of the IR below uses %0 placeholders.

cuda_tile IR

// cuda_tile dialect operations
// High-level tensor operations from CuTile Python API


// === Pass #1 scope=cuda_tile.entry ===
"cuda_tile.module"() {1 regions}
"cuda_tile.entry"() {1 regions}
%0 = "cuda_tile.constant"() : () -> (ct.view)
%0 = "cuda_tile.constant"() : () -> (ct.view)
%0 = "cuda_tile.constant"() : () -> (ct.view)
%0 = "cuda_tile.constant"() : () -> (ct.view)
%0 = "cuda_tile.constant"() : () -> (ct.view)
%0 = "cuda_tile.constant"() : () -> (ct.view)
%0 = "cuda_tile.constant"() : () -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.make_tensor_view"(%cuda_tile.assume, %cuda_tile.assume, %cuda_tile.assume, %cuda_tile.assume, %cuda_tile.assume, %cuda_tile.assume) : (ct.view, ct.view, ct.view, ct.view, ct.view, ct.view) -> (ct.token)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.assume"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.make_tensor_view"(%cuda_tile.assume, %cuda_tile.assume) : (ct.view, ct.view) -> (ct.token)
%0 = "cuda_tile.make_token"() : () -> (ct.ptr)
%0, %1, %2 = "cuda_tile.get_tile_block_id"() : () -> (ct.view, ct.view, ct.view)
%0 = "cuda_tile.divi"(%cuda_tile.assume, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.divi"(%cuda_tile.assume, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.muli"(%cuda_tile.constant, %cuda_tile.divi) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.divi"(%cuda_tile.get_tile_block_id, %cuda_tile.muli) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.muli"(%cuda_tile.divi, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.subi"(%cuda_tile.divi, %cuda_tile.muli) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.mini"(%cuda_tile.subi, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.remi"(%cuda_tile.get_tile_block_id, %cuda_tile.mini) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.remi, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.mini, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.xori"(%cuda_tile.cmpi, %cuda_tile.cmpi) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.remi, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.andi"(%cuda_tile.xori, %cuda_tile.cmpi) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.addi"(%cuda_tile.remi, %cuda_tile.mini) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.select"(%cuda_tile.andi, %cuda_tile.addi, %cuda_tile.remi) : (ct.view, ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.addi"(%cuda_tile.muli, %cuda_tile.select) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.remi"(%cuda_tile.get_tile_block_id, %cuda_tile.muli) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.remi, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.muli, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.xori"(%cuda_tile.cmpi, %cuda_tile.cmpi) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.remi, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.andi"(%cuda_tile.xori, %cuda_tile.cmpi) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.addi"(%cuda_tile.remi, %cuda_tile.muli) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.select"(%cuda_tile.andi, %cuda_tile.addi, %cuda_tile.remi) : (ct.view, ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.divi"(%cuda_tile.select, %cuda_tile.mini) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.muli"(%cuda_tile.addi, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.iota"() : () -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.muli) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.addi"(%cuda_tile.broadcast, %cuda_tile.iota) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.addi) : (ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.exti, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.offset"(%cuda_tile.broadcast, %cuda_tile.exti) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.constant) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0, %1 = "cuda_tile.load_ptr_tko"(%cuda_tile.offset, %cuda_tile.cmpi, %cuda_tile.broadcast, %cuda_tile.make_token) : (ct.view, ct.view, ct.view, ct.ptr) -> (ct.view, ct.ptr)
%0 = "cuda_tile.reshape"(%arg) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.divi"(%cuda_tile.load_ptr_tko, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.make_partition_view"(%cuda_tile.make_tensor_view) : (ct.token) -> (ct.part)
%0, %1 = "cuda_tile.load_view_tko"(%cuda_tile.make_partition_view, %cuda_tile.addi, %cuda_tile.make_token) : (ct.part, ct.view, ct.ptr) -> (ct.view, ct.ptr)
%0 = "cuda_tile.reshape"(%cuda_tile.load_view_tko) : (ct.view) -> (ct.view)
%0 = "cuda_tile.divi"(%cuda_tile.assume, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.iota"() : () -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.divi) : (ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.constant) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.for"(%cuda_tile.constant, %cuda_tile.divi, %cuda_tile.constant, %cuda_tile.constant) {1 regions} : (ct.view, ct.view, ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.muli"(%arg, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.muli) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.addi"(%cuda_tile.broadcast, %cuda_tile.iota) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.addi) : (ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.broadcast, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.muli"(%cuda_tile.broadcast, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.broadcast, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.andi"(%cuda_tile.cmpi, %cuda_tile.cmpi) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.addi"(%cuda_tile.muli, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.offset"(%cuda_tile.broadcast, %cuda_tile.addi) : (ct.view, ct.view) -> (ct.view)
%0, %1 = "cuda_tile.load_ptr_tko"(%cuda_tile.offset, %cuda_tile.andi, %cuda_tile.broadcast, %cuda_tile.make_token) : (ct.view, ct.view, ct.view, ct.ptr) -> (ct.view, ct.ptr)
%0 = "cuda_tile.make_partition_view"(%cuda_tile.make_tensor_view) : (ct.token) -> (ct.part)
%0, %1 = "cuda_tile.load_view_tko"(%cuda_tile.make_partition_view, %cuda_tile.reshape, %arg, %cuda_tile.divi, %cuda_tile.make_token) : (ct.part, ct.view, ct.view, ct.view, ct.ptr) -> (ct.view, ct.ptr)
%0 = "cuda_tile.reshape"(%cuda_tile.load_view_tko) : (ct.view) -> (ct.view)
%0 = "cuda_tile.mmaf"(%cuda_tile.load_ptr_tko, %cuda_tile.reshape, %arg) : (ct.view, ct.view, ct.view) -> (ct.view)
"cuda_tile.continue"(%cuda_tile.mmaf) : (ct.view) -> ()
%0 = "cuda_tile.muli"(%cuda_tile.divi, %cuda_tile.constant) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.iota"() : () -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.muli) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.addi"(%cuda_tile.broadcast, %cuda_tile.iota) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.ftof"(%cuda_tile.for) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.load_ptr_tko) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.addi) : (ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.broadcast, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.muli"(%cuda_tile.broadcast, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.exti"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.exti) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.cmpi"(%cuda_tile.broadcast, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.andi"(%cuda_tile.cmpi, %cuda_tile.cmpi) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.addi"(%cuda_tile.muli, %cuda_tile.broadcast) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.reshape"(%cuda_tile.assume) : (ct.view) -> (ct.view)
%0 = "cuda_tile.broadcast"(%cuda_tile.reshape) : (ct.view) -> (ct.view)
%0 = "cuda_tile.offset"(%cuda_tile.broadcast, %cuda_tile.addi) : (ct.view, ct.view) -> (ct.view)
%0 = "cuda_tile.store_ptr_tko"(%cuda_tile.offset, %cuda_tile.ftof, %cuda_tile.andi, %cuda_tile.make_token) : (ct.view, ct.view, ct.view, ct.ptr) -> (ct.ptr)
"cuda_tile.return"()

nv_tileaa IR

// nv_tileaa dialect operations
// Tile-level ops (architecture-independent)


// === Pass #1 scope=nv_tileaa.func ===
"nv_tileaa.func"() {nv_tileaa.kernel_spec} {1 regions}
%0 = "nv_tileaa.assume"(%arg) : (aa.memref) -> (aa.memref)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (aa.memref) -> (aa.memref)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.splat"(%nv_tileaa.assume) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.splat"(%nv_tileaa.assume) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (aa.memref) -> (aa.memref)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%arg) : (aa.memref) -> (aa.memref)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.splat"(%nv_tileaa.assume) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.assume"(%arg) : (aa.memref) -> (aa.memref)
%0 = "nv_tileaa.assume"(%arg) : (iN) -> (iN)
%0 = "nv_tileaa.assume"(%nv_tileaa.assume) : (iN) -> (iN)
%0 = "nv_tileaa.make_memref"(%nv_tileaa.assume, %nv_tileaa.assume, %nv_tileaa.assume, %nv_tileaa.assume, %nv_tileaa.assume, %nv_tileaa.assume) : (aa.memref, iN, iN, iN, iN, iN) -> (aa.btile)
%0 = "nv_tileaa.make_memref"(%nv_tileaa.assume, %nv_tileaa.assume) : (aa.memref, iN) -> (aa.btile)
%0 = "nv_tileaa.create_mem_token"() : () -> (aa.ptr)
%0 = "nv_tileaa.get_program_id"() : () -> (iN)
%0 = "nv_tileaa.splat"(%nv_tileaa.get_program_id) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.make_range"(%arith.constant, %arith.constant) : (iN, iN) -> (tensor<...>)
%0 = "nv_tileaa.extract"(%arith.muli) : (tensor<...>) -> (iN)
%0 = "nv_tileaa.splat"(%nv_tileaa.extract) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.extract"(%arith.extsi) : (tensor<...>) -> (iN)
%0 = "nv_tileaa.splat"(%nv_tileaa.extract) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%nv_tileaa.assume) : (aa.memref) -> (tensor<...>)
%0 = "nv_tileaa.addptr"(%nv_tileaa.splat, %arith.extsi) : (tensor<...>, tensor<...>) -> (tensor<...>)
%0, %1 = "nv_tileaa.load"(%nv_tileaa.addptr, %arith.cmpi, %arith.constant, %nv_tileaa.create_mem_token) : (tensor<...>, tensor<...>, tensor<...>, aa.ptr) -> (tensor<...>, aa.ptr)
%0 = "nv_tileaa.splat"(%arg) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.block_tile"(%nv_tileaa.make_memref) : (aa.btile) -> (aa.mtoken)
%0 = "nv_tileaa.extract"(%arith.addi) : (tensor<...>) -> (iN)
%0, %1 = "nv_tileaa.tiled_load"(%nv_tileaa.block_tile, %nv_tileaa.extract, %nv_tileaa.create_mem_token) : (aa.mtoken, iN, aa.ptr) -> (tensor<...>, aa.ptr)
%0 = "nv_tileaa.view"(%nv_tileaa.tiled_load) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.make_range"(%arith.constant, %arith.constant) : (iN, iN) -> (tensor<...>)
%0 = "nv_tileaa.expand_dims"(%arith.floordivsi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%arith.extsi) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%arith.extsi) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%arith.extsi) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%nv_tileaa.assume) : (aa.memref) -> (tensor<...>)
%0 = "nv_tileaa.extract"(%arith.ceildivsi) : (tensor<...>) -> (iN)
%0 = "nv_tileaa.splat"(%arg) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.extract"(%arith.muli) : (tensor<...>) -> (iN)
%0 = "nv_tileaa.splat"(%nv_tileaa.extract) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.expand_dims"(%arith.addi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.broadcast"(%arith.extsi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.broadcast"(%arith.extsi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.addptr"(%nv_tileaa.splat, %arith.addi) : (tensor<...>, tensor<...>) -> (tensor<...>)
%0, %1 = "nv_tileaa.load"(%nv_tileaa.addptr, %arith.andi, %arith.constant, %nv_tileaa.create_mem_token) : (tensor<...>, tensor<...>, tensor<...>, aa.ptr) -> (tensor<...>, aa.ptr)
%0 = "nv_tileaa.block_tile"(%nv_tileaa.make_memref) : (aa.btile) -> (aa.mtoken)
%0 = "nv_tileaa.extract"(%nv_tileas.convert_layout) : (tensor<...>) -> (iN)
%0 = "nv_tileaa.extract"(%arith.floordivsi) : (tensor<...>) -> (iN)
%0, %1 = "nv_tileaa.tiled_load"(%nv_tileaa.block_tile, %nv_tileaa.extract, %arg, %nv_tileaa.extract, %nv_tileaa.create_mem_token) : (aa.mtoken, iN, iN, iN, aa.ptr) -> (tensor<...>, aa.ptr)
%0 = "nv_tileaa.view"(%nv_tileaa.tiled_load) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.dot"(%nv_tileaa.load, %nv_tileaa.view, %arg) : (tensor<...>, tensor<...>, tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.make_range"(%arith.constant, %arith.constant) : (iN, iN) -> (tensor<...>)
%0 = "nv_tileaa.extract"(%arith.muli) : (tensor<...>) -> (iN)
%0 = "nv_tileaa.splat"(%nv_tileaa.extract) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.fp_to_fp"(%scf.for) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.expand_dims"(%nv_tileaa.load) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.expand_dims"(%arith.addi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.broadcast"(%arith.extsi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%arith.extsi) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%arith.extsi) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.broadcast"(%arith.extsi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%arith.extsi) : (iN) -> (tensor<...>)
%0 = "nv_tileaa.splat"(%nv_tileaa.assume) : (aa.memref) -> (tensor<...>)
%0 = "nv_tileaa.addptr"(%nv_tileaa.splat, %arith.addi) : (tensor<...>, tensor<...>) -> (tensor<...>)
%0 = "nv_tileaa.store"(%nv_tileaa.addptr, %nv_tileaa.fp_to_fp, %arith.andi, %nv_tileaa.create_mem_token) : (tensor<...>, tensor<...>, tensor<...>, aa.ptr) -> (aa.ptr)
"nv_tileaa.return"()

// === Pass #2 scope=nv_tileaa.func ===
// === Pass #3 scope=nv_tileaa.func ===
// === Pass #4 scope=nv_tileaa.func ===
// === Pass #5 scope=nv_tileaa.func ===
// === Pass #6 scope=nv_tileaa.func ===
// === Pass #7 scope=nv_tileaa.func ===
// === Pass #8 scope=nv_tileaa.func ===
// === Pass #9 scope=nv_tileaa.func ===
// === Pass #10 scope=nv_tileaa.func ===
// === Pass #11 scope=nv_tileaa.func ===

// === Pass #12 scope=nv_tileaa.func ===
// (Lines 193-352 - final assembly with fp_to_fp conversions)
// See dump for complete content including:
// - 32 fp_to_fp operations for output precision conversion
// - Multiple nv_tileaa.func declarations with kernel metadata
// - Final memory layout preparation

nv_tileas IR

// nv_tileas dialect operations
// Tile-level Scheduled Assembly (architecture-specific)


// [within nv_tileaa.func pass]
%0, %1 = "nv_tileas.load"(%nv_tileaa.addptr, %arith.cmpi, %arith.constant, %nv_tileaa.create_mem_token) : (tensor<...>, tensor<...>, tensor<...>, aa.ptr) -> (tensor<...>, aa.ptr)
%0, %1 = "nv_tileas.tiled_load"(%nv_tileaa.block_tile, %nv_tileaa.extract, %nv_tileaa.create_mem_token) : (aa.mtoken, iN, aa.ptr) -> (tensor<...>, aa.ptr)
%0 = "nv_tileas.view"(%nv_tileas.tiled_load) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileas.expand_dims"(%arith.floordivsi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileas.expand_dims"(%arith.addi) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileas.convert_layout"(%nv_tileaa.broadcast) : (tensor<...>) -> (tensor<...>)
%0, %1 = "nv_tileas.load"(%nv_tileaa.addptr, %arith.andi, %arith.constant, %nv_tileaa.create_mem_token) : (tensor<...>, tensor<...>, tensor<...>, aa.ptr) -> (tensor<...>, aa.ptr)
%0 = "nv_tileas.convert_layout"(%nv_tileas.view) : (tensor<...>) -> (tensor<...>)
%0, %1 = "nv_tileas.tiled_load"(%nv_tileaa.block_tile, %nv_tileaa.extract, %arg, %nv_tileaa.extract, %nv_tileaa.create_mem_token) : (aa.mtoken, iN, iN, iN, aa.ptr) -> (tensor<...>, aa.ptr)
%0 = "nv_tileas.view"(%nv_tileas.tiled_load) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileas.convert_layout"(%nv_tileas.load) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileas.convert_layout"(%nv_tileas.view) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileas.convert_layout"(%arg) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileas.dot"(%nv_tileas.convert_layout, %nv_tileas.convert_layout, %nv_tileas.convert_layout, %arith.constant) : (tensor<...>, tensor<...>, tensor<...>, iN) -> (tensor<...>)
%0 = "nv_tileas.convert_layout"(%nv_tileas.dot) : (tensor<...>) -> (tensor<...>)
%0 = "nv_tileas.make_tiled_tma_desc"(%nv_tileaa.make_memref) {tmaIdx} : (aa.btile) -> (?type)

// [within builtin.module pass]
%0 = "nv_tileas.async.pipeline.create_pipeline"() : () -> (?type)
%0 = "nv_tileas.async.pipeline.create_pipeline"() : () -> (?type)
%0 = "nv_tileas.async.pipeline.create_pipeline"() : () -> (?type)
%0 = "nv_tileas.async.pipeline.create_iterator"(%nv_tileas.async.pipeline.create_pipeline) : (?type) -> (?type)
%0 = "nv_tileas.async.pipeline.create_iterator"(%nv_tileas.async.pipeline.create_pipeline) : (?type) -> (?type)
%0 = "nv_tileas.async.pipeline.create_iterator"(%nv_tileas.async.pipeline.create_pipeline) : (?type) -> (?type)
%0 = "nv_tileas.async.pipeline.create_iterator"(%nv_tileas.async.pipeline.create_pipeline) : (?type) -> (?type)
%0 = "nv_tileas.async.pipeline.create_iterator"(%nv_tileas.async.pipeline.create_pipeline) : (?type) -> (?type)
%0 = "nv_tileas.async.pipeline.create_iterator"(%nv_tileas.async.pipeline.create_pipeline) : (?type) -> (?type)
"nv_tileas.async.pipeline.agent_switch"(%arg, ...) {4 regions} : (...) -> ()

// Producer-Consumer Pattern (repeated throughout)
%0 = "nv_tileas.async.pipeline.producer_acquire"(%arg, %arg) : (?type, ?type) -> (?type)
%0 = "nv_tileas.async.pipeline.inc_iter"(%arg) : (?type) -> (?type)
%0 = "nv_tileas.async.pipeline.producer_write"(%arg, %nv_tileas.async.pipeline.producer_acquire) {1 regions} : (?type, ?type) -> (?type)
"nv_tileas.async.pipeline.producer_commit"(%arg, %nv_tileas.async.pipeline.producer_write) : (?type, ?type) -> ()

%0 = "nv_tileas.async.pipeline.consumer_wait"(%arg, %arg) : (?type, ?type) -> (?type)
%0, %1 = "nv_tileas.async.pipeline.consumer_read"(%arg, %nv_tileas.async.pipeline.consumer_wait) {consumer_idx} {1 regions} : (?type, ?type) -> (?type, tensor<...>)
"nv_tileas.async.pipeline.consumer_release"(%arg, %nv_tileas.async.pipeline.consumer_read) : (?type, ?type) -> ()

// Dot operations (100+ for tiled matrix multiply)
%0 = "nv_tileas.dot"(%nv_tileas.extract_slice, %nv_tileas.extract_slice, %arg, %arith.constant) : (tensor<...>, tensor<...>, tensor<...>, iN) -> (tensor<...>)
// ... (repeated for all tile partitions)

// TMA operations
%0 = "nv_tileas.make_tiled_tma_desc"(%nv_tileaa.make_memref) {tmaIdx} : (aa.btile) -> (?type)
%0 = "nv_tileas.async.tiled_tma_load"(%nv_tileaa.block_tile, %arg, %nv_tileas.make_tiled_tma_desc, %nv_tileaa.extract, %arg, %nv_tileaa.extract) : (...) -> (?type)

// Output assembly (32 insert_slice for output tiles)
%0 = "nv_tileas.insert_slice"(%nv_tileaa.fp_to_fp, %nv_tileas.alloc_tensor, %arith.constant, %arith.constant) : (tensor<...>, tensor<...>, iN, iN) -> (tensor<...>)
// ... (repeated 32 times)

NVVM Dialect IR

// nvvm dialect operations
// NVVM (NVIDIA PTX intrinsics in MLIR form)

// === Barrier and Fence Operations ===
"nvvm.fence.mbarrier.init"()
"nvvm.barrier"()
"nvvm.fence.proxy"()

%0 = "nvvm.read.ptx.sreg.clusterid.x"() : () -> (i32)
%0 = "nvvm.read.ptx.sreg.tid.x"() : () -> (i32)

// === Async Global→Shared Copies (136 instances) ===
"nvvm.cp.async.shared.global"(%ptr, %src, %predicate) : (ptr<3>, ptr<1>, i1) -> ()

// === Tensor Core Data Packing (1,088 instances) ===
%0 = "nvvm.cvt.packfloat.f32"(%a, %b, %mode) : (f32, f32, i32) -> (i32)

// === Memory Barriers (66 instances) ===
"nvvm.mbarrier.init.shared"(%barrier, %count) : (ptr<3>, i32) -> ()
"nvvm.mbarrier.arrive.shared"(%barrier) : (ptr<3>) -> ()
"nvvm.mbarrier.wait.shared"(%barrier, %phase) : (ptr<3>, i32) -> ()

// === Matrix Load Operations (512 instances) ===
%0 = "nvvm.ldmatrix"(%ptr) {layout = #nvvm.mma_layout<row>, num = 4}
    : (ptr<3>) -> vector<4xi32>

// === Tensor Core MMA (512 instances) ===
%0 = "nvvm.mma.sync"(%a, %b, %c) {
    layoutA = #nvvm.mma_layout<row>,
    layoutB = #nvvm.mma_layout<col>,
    shape = #nvvm.shape<m = 16, n = 8, k = 16>
} : (vector<4xi32>, vector<2xi32>, vector<4xf32>) -> vector<4xf32>

// ... (2,977 lines total - tensor core operations, barriers, memory ops)

LLVM IR / NVVM IR

; ModuleID = 'LLVMDialectModule'
target datalayout = "e-p:64:64:64-p3:32:32:32-i1:8:8-i8:8:8-i16:16:16-i32:32:32-i64:64:64"
target triple = "nvptx64-nvidia-cuda"

; Kernel entry point with TMA descriptors
define ptx_kernel void @fused_moe_kernel(
    ptr addrspace(1) %A,           ; Input tokens
    ptr addrspace(1) %B,           ; Expert weights
    ptr addrspace(1) %C,           ; Output
    ptr addrspace(1) %topk_weights,
    ptr addrspace(1) %sorted_token_ids,
    ptr addrspace(1) %sorted_expert_ids,
    i32 %num_token_replicas,
    i1 %mul_routed_weight,
    ; ... TMA descriptors appended by tileas-attach-tma-desc-args
) #0 {
entry:
    ; Get cluster/block/thread IDs
    %clusterid = call i32 @llvm.nvvm.read.ptx.sreg.clusterid.x()
    %tid = call range(i32 0, 384) i32 @llvm.nvvm.read.ptx.sreg.tid.x()

    ; Initialize barriers for async pipeline
    call void @llvm.nvvm.mbarrier.init.shared(ptr addrspace(3) %barrier, i32 128)

    ; Async copy from global to shared memory
    call void @llvm.nvvm.cp.async.shared.global(
        ptr addrspace(3) %shared_dst,
        ptr addrspace(1) %global_src,
        i32 16,    ; bytes
        i1 %pred   ; predicate
    )

    ; Tensor core matrix multiply
    %result = call <4 x float> @llvm.nvvm.mma.m16n8k16.row.col.f32.f16.f16.f32(
        <4 x i32> %a_frag,
        <2 x i32> %b_frag,
        <4 x float> %c_frag
    )

    ; ... (full pipeline with producer/consumer synchronization)
}

; NVVM intrinsic declarations
declare i32 @llvm.nvvm.read.ptx.sreg.tid.x()
declare i32 @llvm.nvvm.read.ptx.sreg.clusterid.x()
declare void @llvm.nvvm.mbarrier.init.shared(ptr addrspace(3), i32)
declare void @llvm.nvvm.cp.async.shared.global(ptr addrspace(3), ptr addrspace(1), i32, i1)
declare <4 x float> @llvm.nvvm.mma.m16n8k16.row.col.f32.f16.f16.f32(<4 x i32>, <2 x i32>, <4 x float>)

PTX Assembly

//
// Generated by NVIDIA NVVM Compiler
// Cuda compilation tools, release 13.1, V13.1.80
// Based on NVVM 21.0.0
//

.version 9.1
.target sm_120a
.address_size 64

.visible .entry fused_moe_kernel(
    .param .u64 .ptr .global .align 1 fused_moe_kernel_param_0,
    .param .u32 fused_moe_kernel_param_1,
    // ... 31 parameters total including TMA descriptors
    .hidden .param .align 64 .b8 fused_moe_kernel_param_31[128]
)
.reqntid 384
.minnctapersm 1
{
    .reg .pred  %p<306>;
    .reg .b16   %rs<500>;
    .reg .b32   %r<4905>;
    .reg .b64   %rd<348>;

    // 80KB shared memory for double buffering
    .shared .align 128 .b8 global_smem[82032];

    // === Barrier Initialization ===
    mbarrier.init.shared.b64  [global_smem+82000], %r2369;
    mbarrier.init.shared.b64  [global_smem+82008], %r2369;

    // === Matrix Load (ldmatrix for tensor cores) ===
    ldmatrix.sync.aligned.m8n8.x4.shared.b16 {%r4645, %r4646, %r4647, %r4648}, [%r2789];
    ldmatrix.sync.aligned.m8n8.x4.shared.b16 {%r4649, %r4650, %r4651, %r4652}, [%r2793];
    ldmatrix.sync.aligned.m8n8.x4.shared.b16 {%r4653, %r4654, %r4655, %r4656}, [%r2797];
    ldmatrix.sync.aligned.m8n8.x4.shared.b16 {%r4657, %r4658, %r4659, %r4660}, [%r2801];
    // ... (512 ldmatrix instructions total)

    // === Tensor Core MMA (HMMA) ===
    // Note: sm_120a uses wgmma/tcgen05 instructions in SASS
    // PTX shows the portable mma.sync form
    mma.sync.aligned.m16n8k16.row.col.f32.f16.f16.f32
        {%f1, %f2, %f3, %f4},
        {%r4645, %r4646, %r4647, %r4648},
        {%r4709, %r4710},
        {%f1, %f2, %f3, %f4};
    // ... (512 mma.sync instructions total)

    // === Async Copy (cp.async for global→shared) ===
    cp.async.cg.shared.global [%r2856], [%rd112], 16, %p116;
    cp.async.cg.shared.global [%r2857], [%rd113], 16, %p116;
    // ... (136 cp.async instructions total)

    // === Barrier Synchronization ===
    mbarrier.arrive.shared.b64 _, [global_smem+82000];
    mbarrier.try_wait.parity.shared.b64 %p117, [global_smem+82000], %r2371;
}

Citation

To cite this article:

@article{zhu2026tileir,
  title = {NVIDIA TileIR Internals: from CuTile to MLIR/LLVM to SASS},
  author = {Zhu, Henry},
  journal = {maknee.github.io},
  year = {2026},
  month = {January},
  url = "https://maknee.github.io/blog/2026/NVIDIA-TileIR-Internals-from-CuTile-to-MLIR-LLVM-to-SASS/"
}

What is CuTile?

What is TileIR?

Running Example: MoE Kernel

Compiling with tileiras

Undocumented Environment Variables

Interesting undocumented CLI options

Pipeline Overview

The Dialects

cuda_tile: High-Level Tensor Operations

MoE in cuda_tile

nv_tileaa

nv_tileas

NVVM + LLVM

SASS

The TileIR passes

Pass 1: cuda_tile.entry

Pass 2: nv_tileaa.func (×12 iterations)

Pass 3: builtin.module

Pass 4: gpu.module

Complete Pass Catalog

Conversion Passes

TileAS Optimization Passes

Conclusion

Appendix: TileIR Passes Reference

convert-cudatile-to-tileaa

convert-tileaa-to-tileas

convert-nv-tileas-to-llvm

convert-gpu-to-nvvm

convert-pipeline-to-nvvm

tileas-assign-dot-layouts

tileas-assign-load-store-layouts

tileas-assign-pipeline-layouts

tileas-generate-schedule

tileas-materialize-schedule

tileas-materialize-async

tileas-materialize-convert-layout

tileas-attach-tma-desc-args

tileas-slicing

tileas-plan-cta

tileas-resolve-agent-boundary

tileas-remove-buffer-alias

tileas-remove-dead-args

tileas-remove-layout-conversions

tileas-optimize-alloc-tensor

tileas-optimize-reduce

tileas-optimize-dot-accumulation

tileas-recompute-for-scheduling

tileas-legalize-fma-dot

tileas-legalize-reduce

tileas-legalize-tmem-copy

tileas-slice-and-fuse

tileas-refine-atom-by-resource

tileas-prepare-for-scheduling

tileas-unroll-register-loops

tileas-unspecialized-pipeline

tileas-dynamic-persistent

tileas-insert-OCG-knobs

Appendix: IR Dumps

Citation

Stay Updated

Enjoy Reading This Article?

Pass 1: `cuda_tile.entry`

Pass 2: `nv_tileaa.func` (×12 iterations)

Pass 3: `builtin.module`

Pass 4: `gpu.module`
